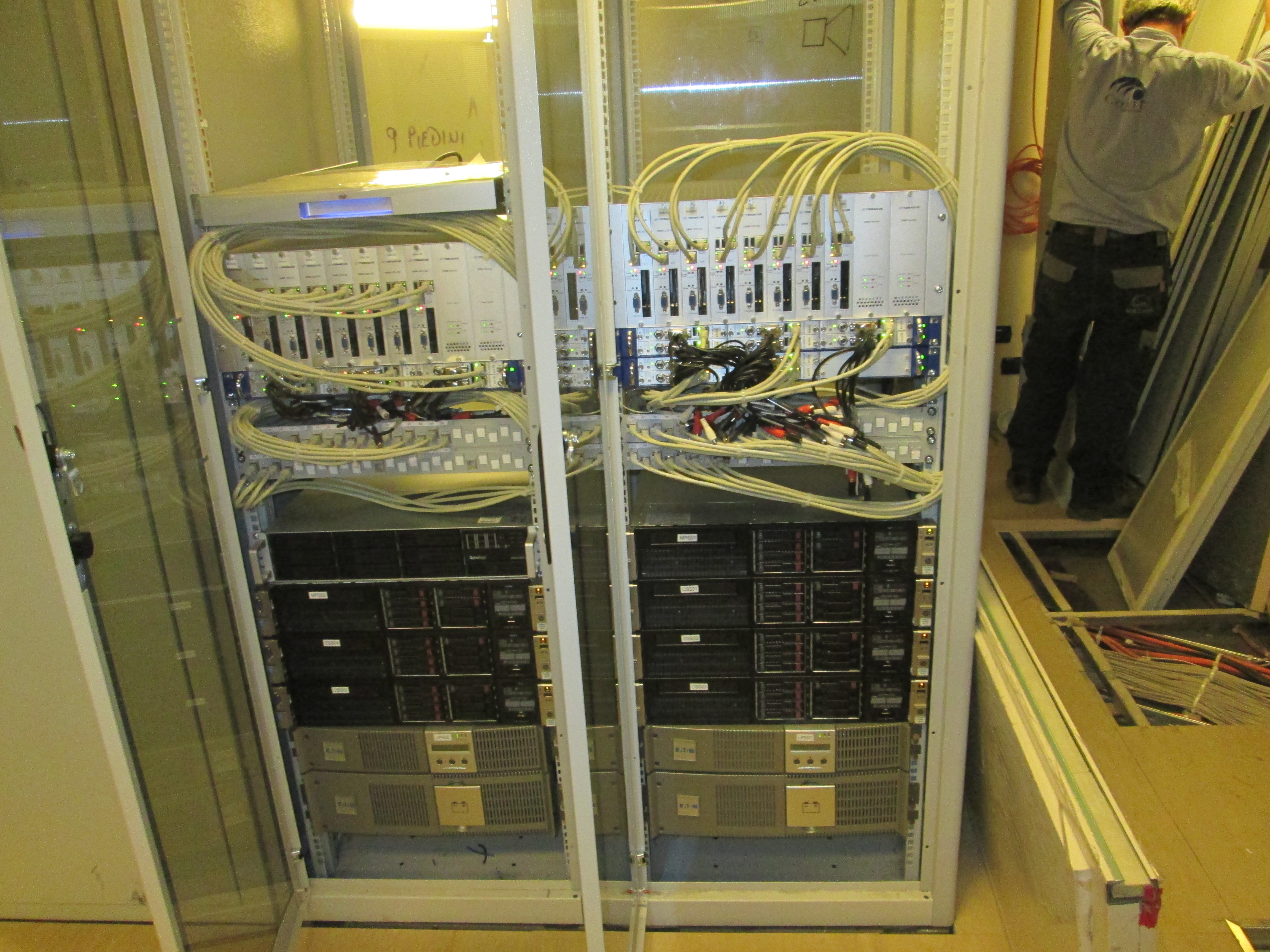

Rack 1:

Servers:

MPS01: 10.66.126.11

CSS01: 10.66.126.71

CSS02: 10.66.126.72

CSS03: 10.66.126.73

Teracue:

DMM 220 Sat Gateway (01 - 08): 10.66.125.21 - 28

ENC-300 Encoder (01 - 10): 10.66.125.61 - 71

UPS:

UPS01

Rack 2:

Servers:

MPS02: 10.66.126.12

CSS04: 10.66.126.74

CSS05: 10.66.126.75

Teracue:

DMM 220 Sat Gateway (09-16): 10.66.125.29 - 36

ENC-300 Encoder (11-16): 10.66.125.72-78

UPS:

UPS02

NAS:

Synology NAS: 10.66.126.15

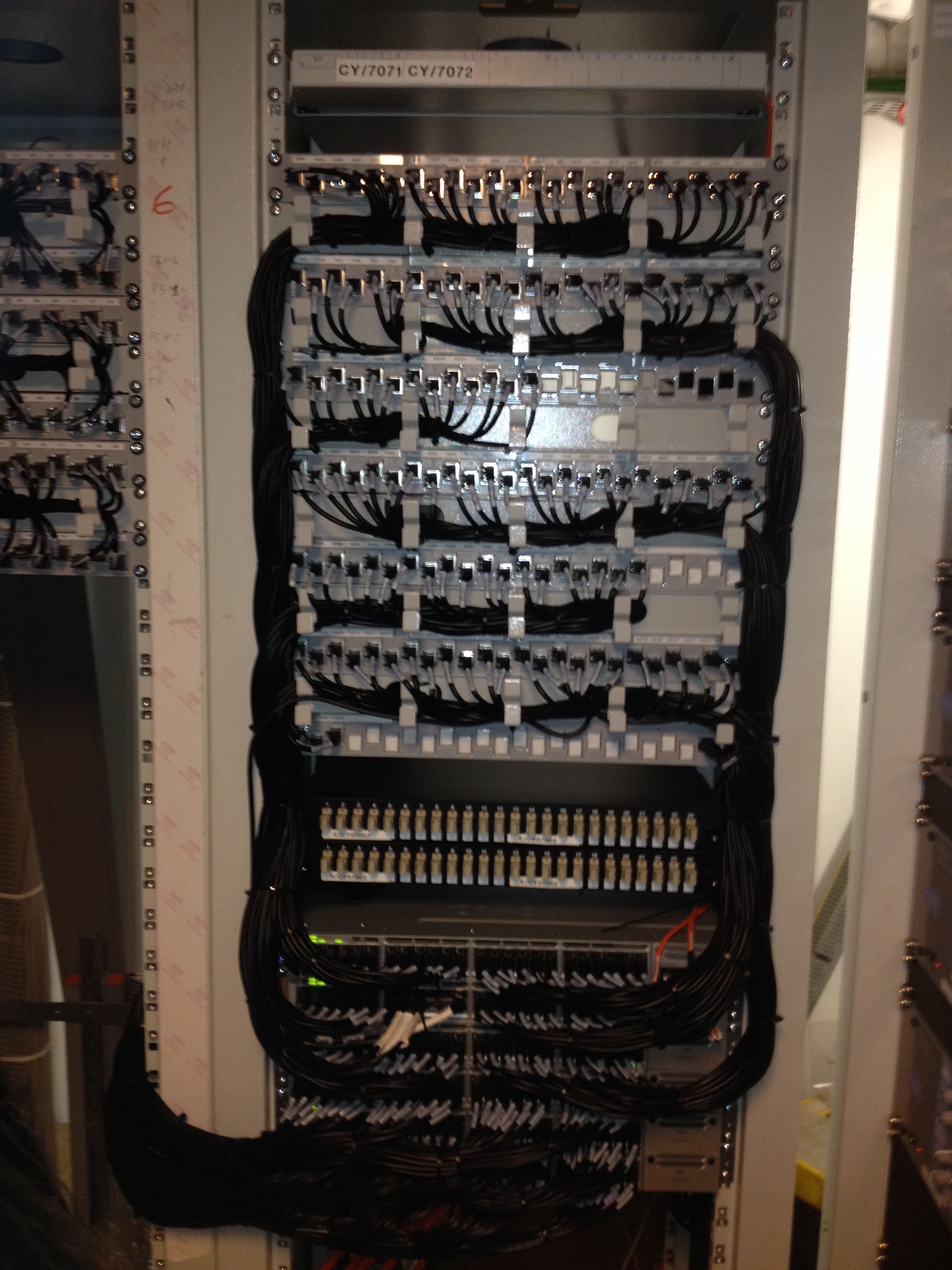

Rack 3:

Switches:

(Not part of LH-Delivery!)

6x Cisco-Switches. Switch 4-6 (from Top) are for LH

Note: This rack seems to have 2 Fuses: One in the lower part of Rack 3 but it seems that the Rack left of Rack 3 has also a fuse in the lower part that is for this rack.

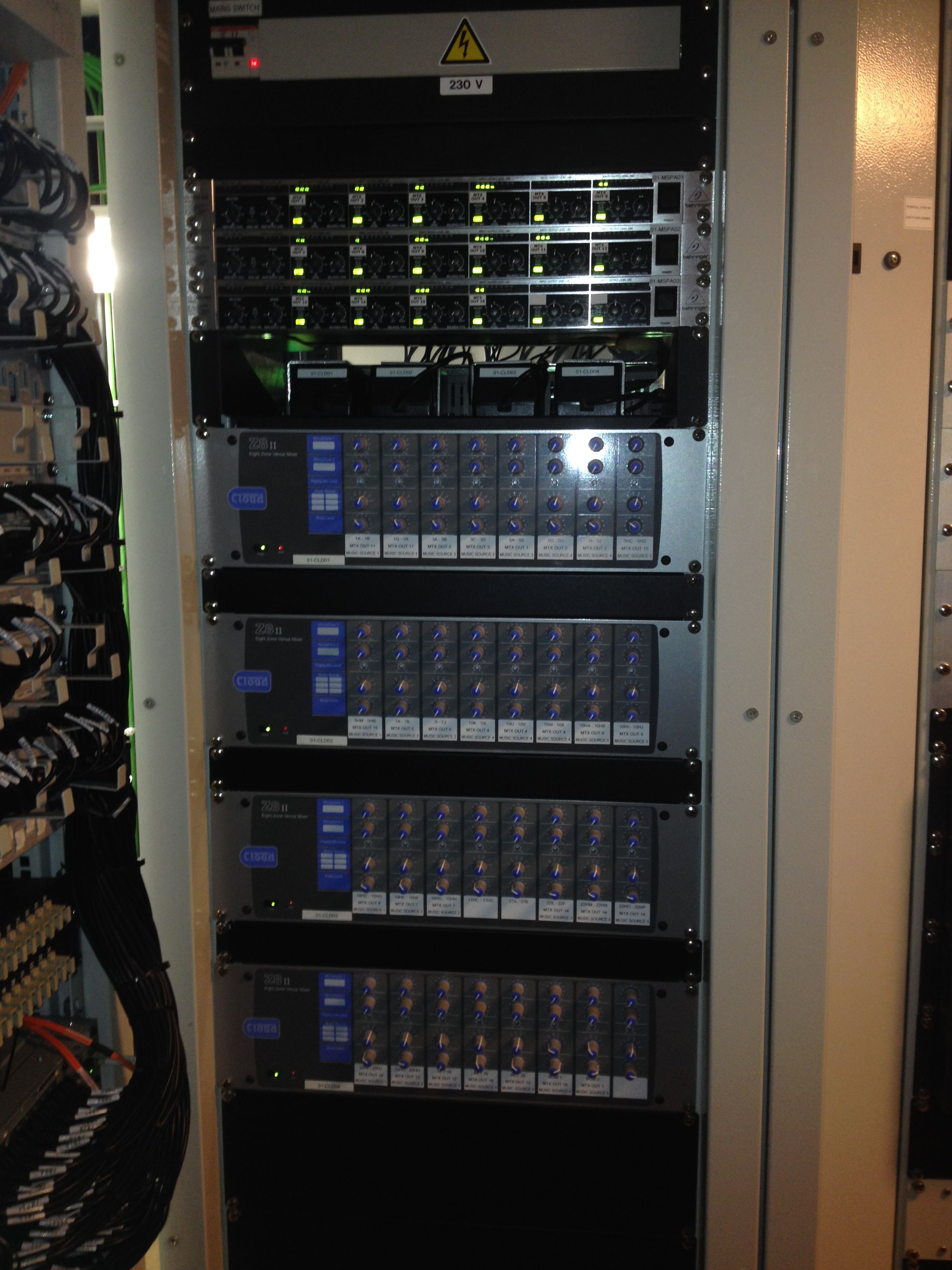

Rack 4:

PA-System

Here is the source of the PA/GA-System and also the volume control for the Cabin-Speakers

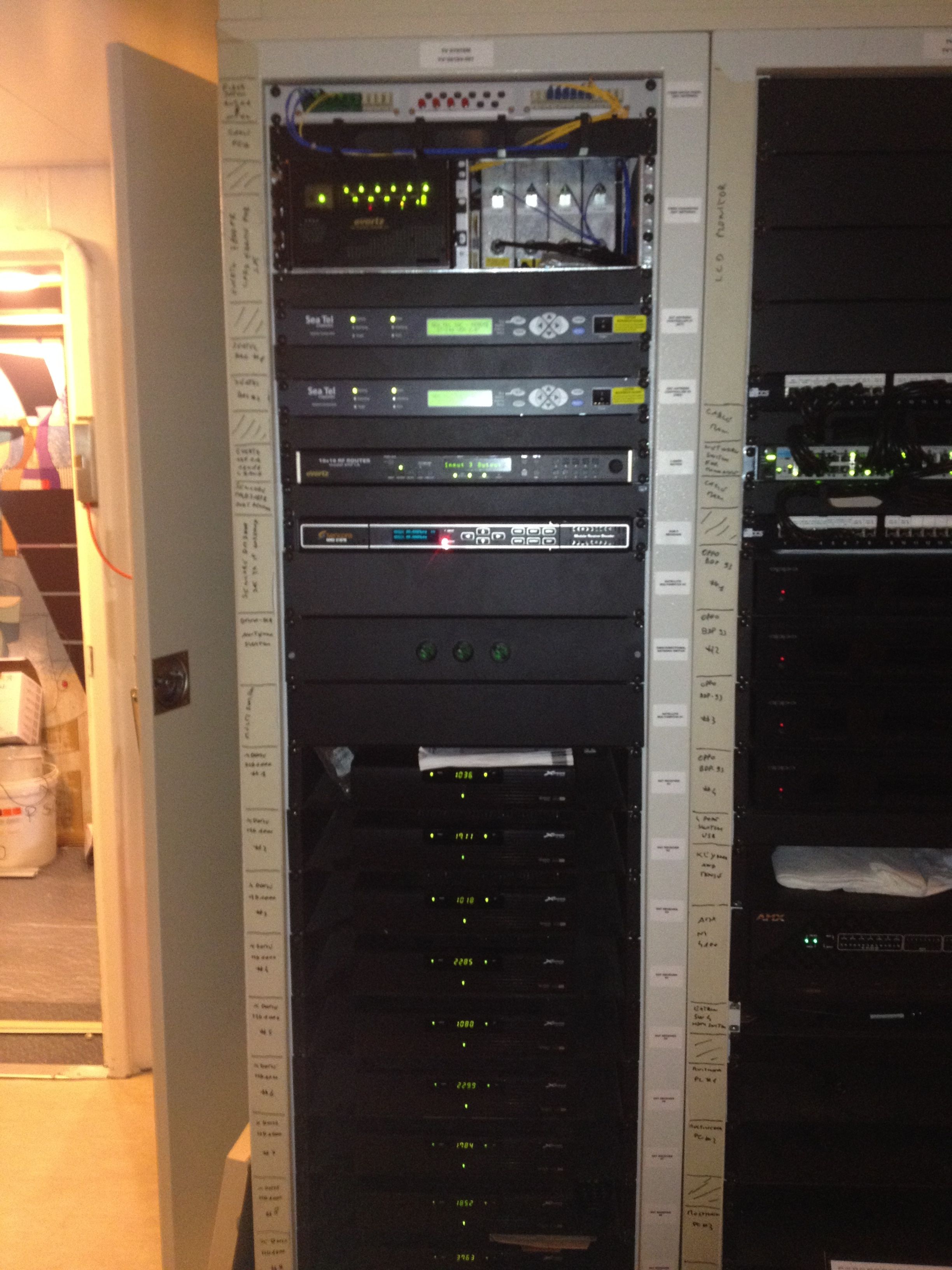

Rack 5:

SAT-System

This is the source for the SAT-System. Here is the Multiswitch, the Antenna Control and also the XDome-Receivers for testing
